2011 - 2014 Mercedes Benz CL550 - M278 V8 Bi-turbo 4.7L - Performance ECU Tuning
Performance Flash Tune for Mercedes Benz CL550 C216 with M278 4.7L V8 Bi-Turbo Engine with MED17.7.1/MED17.7.3 ECU.

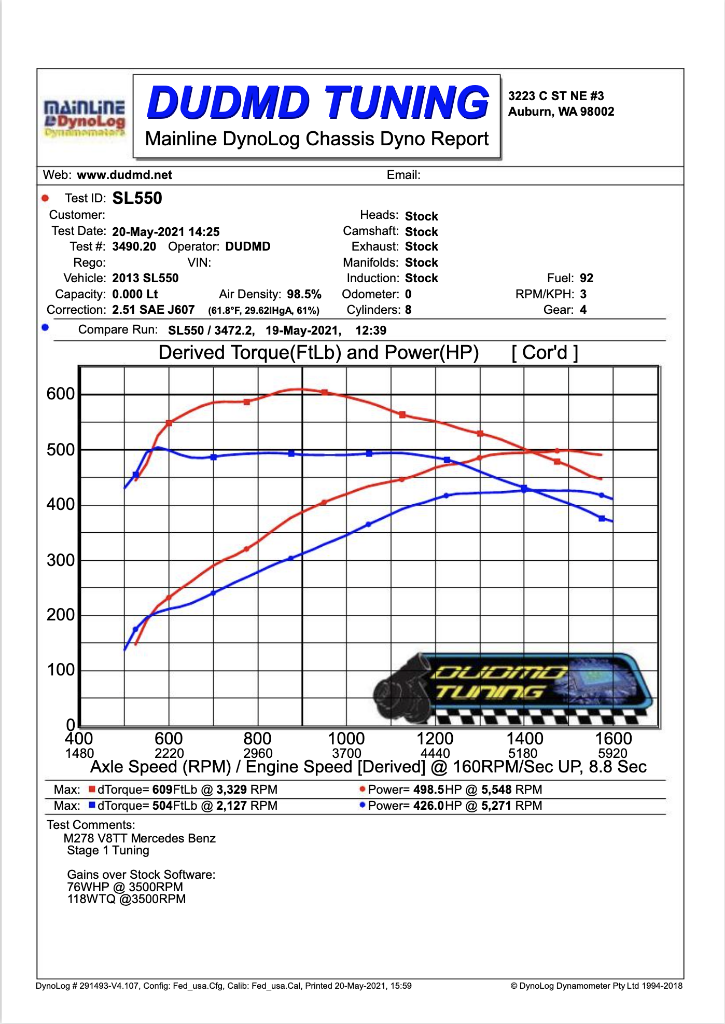

CL550 M278 Performance Flash Tune Stage 1 gains:
- 76WHP @ 3500RPM
- 118WTQ @ 3500RPM
Performance tuning modifies torque limiter maps, boost levels, fuel maps, ignition timing advance maps and more. All to help safely increase HP/TQ, while keeping good drive-ability and factory fail-safes/limp protection in place. Factory emissions remain functional and are not disabled. Gains can vary on vehicle condition and location.
- We do not offer cat delete software or tuning for emissions bypass.
- We do not offer tuning services to the state of California.
We have 2 methods of having this CL550 M278 ECU tune installed (Flash Type Selection).
- M278 CL550 BENCH TUNE:
- Remove the ECU and mail it in. We will create a full backup image of your ECU without opening the lid or any physical damage to the ECU at all. We then upload our tune and mail the ECU back. This is the safest way, as we can have a full backup of the entire ECU content.
- M278 CL550 REMOTE TUNE:
- No downtime!!! With this option, once an order is placed, we will ship you a cable, that cable connects to a laptop and we are able to remote into your computer to flash the car. The remote flash option includes the cost of the cable (which is yours to keep). If we are out of cables for remote flashing, we can offer a cable for rent with a deposit. (We will message you if this happens). In some cases, not all cars can be flashed this way. In that case, you will have to ship your ECU to us for a bench flash. *You will need a Windows 8 or newer laptop and WIFI to flash remotely (Apple, Chromebooks are not supported).
- 2011 - 2014 Mercedes Benz - CL550 - COUPE (C216) - M278 Twin Turbo 4.7L V8
Please print out the tuning form below and mail it in with your ECU. If you're doing a remote flash you can email it.
Tax excluded. Shipping calculated at checkout
Mercedes Benz M278 ECU Tuning FAQs
What is a Mercedes ECU?
A Mercedes ECU, or Engine Control Unit, is the computer that manages the engine's functions for Mercedes-Benz vehicles. Similar to the ECUs found in other vehicles, it plays a crucial role in controlling various aspects of engine performance, including fuel injection, ignition timing, and air-to-fuel ratio. The ECU continuously monitors data from numerous sensors throughout the engine and vehicle to make real-time adjustments, optimizing performance, fuel efficiency, and emissions.
The Mercedes ECU is an integral part of the vehicle's overall management system, interfacing with other control units like the transmission control unit (TCU), anti-lock braking system (ABS), and electronic stability program (ESP) to ensure seamless operation and enhanced driving experience. It also plays a significant role in diagnostic processes, storing fault codes that can be accessed with diagnostic equipment to troubleshoot issues.
Over the years, Mercedes-Benz has developed sophisticated ECUs to meet stringent automotive standards, incorporating advanced technology and software to improve vehicle dynamics, safety, and environmental performance. This includes features like adaptive cruise control, automatic braking, and emission control systems, all of which rely on the ECU's processing and control capabilities.
What is the Mercedes Benz M278 Engine?
Q: What is the Mercedes-Benz M278 engine?
A: The Mercedes-Benz M278 is a family of twin-turbocharged V8 gasoline engines. It is part of Mercedes-Benz's lineup of internal combustion engines and was introduced in the early 2010s. The M278 engine features direct injection and is known for its power, efficiency, and smooth operation.
Q: What are the key features of the M278 engine?
A: Key features of the M278 engine include:
- 4.6 or 4.7 liters of displacement, depending on the model.
- Twin turbochargers to enhance power and torque.
- Direct fuel injection for improved fuel efficiency and lower emissions.
- A 90-degree V8 configuration that balances performance and smoothness.
- Advanced technologies such as variable valve timing and start/stop functionality to further improve efficiency.
Q: In which Mercedes-Benz models can the M278 engine be found?
A: The M278 engine has been used in a variety of Mercedes-Benz models, including but not limited to the S-Class, CLS-Class, E-Class, and GL-Class. It powers both sedan and SUV models, providing them with a blend of luxury, performance, and comfort.
Q: How does the M278 engine compare to its predecessors?
A: Compared to its predecessors, the M278 engine offers improved performance, fuel efficiency, and emissions. Its use of twin turbochargers and direct injection, along with other modern technologies, allows it to produce more power while being more environmentally friendly.
Q: What are the performance specifications of the M278 engine?
A: While specific performance figures can vary depending on the vehicle model and configuration, the M278 engine typically produces between 400 to 450 horsepower and substantial torque, often exceeding 500 lb-ft. These figures allow for rapid acceleration and high top speeds, making it suitable for both spirited driving and comfortable cruising.
Q: Are there any known issues with the M278 engine?
A: Like any complex piece of machinery, the M278 engine may have some issues, including those related to its turbochargers, fuel injection system, or electronics. However, Mercedes-Benz is known for its engineering quality and customer service, and many potential issues can be mitigated with regular maintenance and timely repairs.
Q: How does the M278 engine contribute to Mercedes-Benz's reputation for luxury and performance?
A: The M278 engine embodies Mercedes-Benz's commitment to excellence in engineering, performance, and luxury. It provides powerful and efficient performance, enhancing the driving experience in several of the brand's high-end models. Its blend of advanced technology, power, and efficiency helps maintain Mercedes-Benz's position as a leader in the luxury automotive sector.
How can I tell if my Mercedes has the M278 engine?
Q: How can I identify if my Mercedes-Benz has the M278 engine?
A: You can identify if your Mercedes-Benz is equipped with the M278 engine through several methods:
- Engine Bay Label: Check for a label in the engine bay, which typically includes the engine code.
- Vehicle Documentation: Review your vehicle's owner manual or service book, which should list the engine type.
- VIN (Vehicle Identification Number): Use your VIN to look up the engine type. Mercedes-Benz or automotive databases can decode the VIN to provide vehicle specifications, including the engine type.
Q: What are the years and models of Mercedes-Benz USA vehicles that used the M278 engine?
A: The M278 engine has been used in several Mercedes-Benz models in the United States, spanning various years. Below is a list of models and approximate years they were equipped with the M278 engine:
- Mercedes-Benz S-Class (S550): 2012-2017
- Mercedes-Benz CLS-Class (CLS550): 2012-2018
- Mercedes-Benz E-Class (E550): 2012-2016
- Mercedes-Benz GL-Class (GL500/GL550): 2013-2016
- Mercedes-Benz GLE-Class (GLE500/550): 2015-2017
- Mercedes-Benz GLS-Class (GLS500/550): 2016-2019
- Mercedes-Benz SL-Class (SL550): 2013-2018
- Mercedes-Benz CL-Class (CL550): 2011-2014
Please note that the years provided are approximate and can vary slightly depending on the market and specific vehicle configurations.
Q: Are there visual cues specific to the M278 engine for identification?
A: Yes, visual cues can include the twin-turbo setup, which is a distinctive feature of the M278. The engine will have turbochargers mounted on both sides of the engine block. Additionally, engine cover markings or badges might indicate the engine type or model, such as "V8 BITURBO" signs.
Q: Can dealership assistance help in identifying the M278 engine?
A: Absolutely, a Mercedes-Benz dealership or an authorized service center can confirm if your vehicle is equipped with the M278 engine. Providing them with your VIN or allowing them to inspect your vehicle directly can yield a definitive answer.
Q: What if my vehicle’s documentation does not clearly state the engine type?
A: If the documentation is unclear, using online VIN decoders or contacting a Mercedes-Benz dealership with your VIN can provide a detailed vehicle specification, including the engine type. This is one of the most reliable methods to confirm your engine model.
Q: Why is it important to know if my vehicle has the M278 engine?
A: Knowing your vehicle has the M278 engine is crucial for maintenance, repairs, and understanding its performance capabilities. It ensures that you use the correct parts and follow the appropriate service schedule, which is vital for the
What ECU Does My M278 Mercedes-Benz Have?
Q: What is an ECU in the context of my Mercedes-Benz with the M278 engine?
A: ECU stands for Engine Control Unit, which is a critical component in modern vehicles. It is essentially the vehicle's brain, controlling various aspects of engine operation, including fuel injection, ignition timing, and turbocharger boost, to optimize performance, fuel efficiency, and emissions.
Q: Which ECU models are used in Mercedes-Benz vehicles with the M278 engine?
A: Mercedes-Benz vehicles equipped with the M278 engine typically use Bosch MED17.7.1 or MED17.7.3 ECUs. The specific ECU model can depend on the vehicle's production year and model. Generally, earlier versions of M278-equipped vehicles came with the MED17.7.1, while newer variants were upgraded to the MED17.7.3 for enhanced capabilities and performance tuning potential.
Q: How can I find out which ECU model my vehicle has?
A: You can determine your vehicle's ECU model by:
- Visiting a Dealership or Service Center: A professional technician can use diagnostic tools to read the ECU's part number directly from the unit.
- Physical Inspection: For those with technical know-how, physically inspecting the ECU for part numbers can also identify the model. This approach is not recommended for everyone, as it involves accessing the vehicle's electronic components. The ECU is located on top of the engine and very easy to access.
Q: Can my M278's ECU be tuned for better performance?
A: Yes, DUDMD Tuning specialize in tuning the ECUs of Mercedes-Benz vehicles with the M278 engine. These tunes can enhance performance, and tailor the vehicle's characteristics to the owner's preferences. Tuning options usually include remote tuning, which can be done via an internet connection in many cases, and bench flashing, which involves physically accessing the ECU.
Q: What is the difference between remote tuning and bench flashing?
A: Remote tuning allows the ECU software to be updated without needing to physically access the ECU, often through a diagnostic port inside the vehicle. It's convenient and less invasive. Bench flashing, on the other hand, requires the ECU to be removed from the vehicle and connected to a specialized tuner bench. This method is sometimes necessary if the ECU's firmware version or protection mechanisms prevent remote tuning.
Q: Is there any scenario where a bench flash would be required for my M278 ECU?
A: Yes, in some cases, a bench flash is required if remote tuning is not possible. This could be due to several factors, such as:
The ECU having a newer or more secure firmware version that cannot be modified remotely.
Previous modifications to the ECU that prevent standard remote tuning methods.
Specific tuning requirements that can only be addressed through direct access to the ECU.
Q: How do I ensure the tuning of my ECU is done correctly?
A: It is crucial to work with reputable professionals experienced in tuning Mercedes-Benz vehicles, particularly those with the M278 engine. Ensure that the tuner has a good track record, uses the latest software and hardware tools, and offers support for their tuning services. Proper tuning can significantly enhance your vehicle's performance while maintaining reliability.

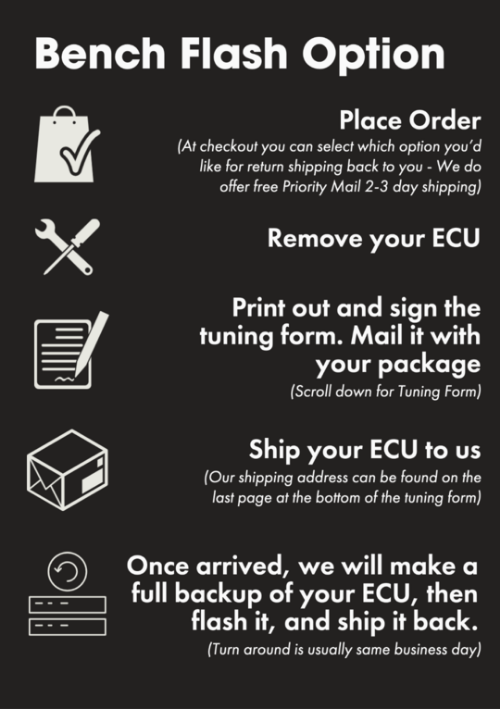

What is a Bench Flash method and how does it work for installing my MB M278 ECU Tune?
The BENCH flash method is a specialized process used for ECU tuning, particularly for high-performance vehicles like those equipped with the Mercedes-Benz M278 engine. This method is essential for models such as the E550 W212, CLS550 W218, S550 W222, S550 W221, GL 450 GL550 X166, and ML550 W166, where direct tuning of the engine control unit (ECU) can significantly enhance performance.
Understanding BENCH Flash Tuning M278 Engine:
BENCH flash tuning involves physically accessing the vehicle's ECU to update its software directly. This process allows an M278 ECU Tuner to optimize the engine's parameters, such as fuel injection, ignition timing, and boost pressure, to increase power output, improve fuel efficiency, and tailor the driving characteristics to the owner's preferences.
The BENCH Flash Process for M278 ECU Tuning:
- ECU Removal: The first step involves carefully removing the ECU from your Mercedes-Benz. This requires some technical knowledge, as it involves navigating the vehicle's engine bay to access and disconnect the ECU.
- Shipping to DUDMD Tuning: Once the ECU is removed, it needs to be safely packaged and shipped to a professional tuning company, such as DUDMD Tuning, that specializes in ECU Tuning for the M278 engine. It's crucial to use a reliable shipping service to ensure the ECU arrives safely and without damage.
- The BENCH Flash Tuning Process: Upon receiving the ECU, DUDMD Tuning will connect it to their specialized tuning bench. This setup allows them to directly interface with the ECU's software. Using their expertise and advanced tuning software, DUDMD will back up all of the existing data first, then modify the ECU's parameters to achieve the desired performance enhancements.
- Return Shipping: Once the bench flash tune is successfully installed and tested, DUDMD Tuning packages the ECU and ships it back to the owner.
- ECU Reinstallation and Vehicle Testing: After receiving the tuned ECU, the owner must reinstall it in their vehicle. Following installation, it's recommended to test the vehicle in a safe environment to experience the enhancements and ensure everything operates correctly.
Benefits of BENCH Flash Tuning for M278 Engines:
BENCH flash tuning allows for a comprehensive and customized upgrade to the vehicle's performance. By directly modifying the ECU's software, tuners can make precise adjustments that are sometimes not possible with other tuning methods. Owners of vehicles like the E550 W212, CLS550 W218, S550 W222, S550 W221, GL 450 GL550 X166, and ML550 W166 can expect to see noticeable improvements in horsepower, torque, throttle response, and even fuel efficiency.
Choosing BENCH Flash ECU Tuning:
Opting for a BENCH flash tune from a reputable M278 ECU Tuner like DUDMD Tuning is a decision that can transform the driving experience of your Mercedes-Benz. It provides a significant performance boost while ensuring the tuning process is handled by professionals with extensive experience in ECU tuning for the M278 engine.
Turnaround Time for a Bench Flash Tune for the Mercedes Benz M278 ECU Tune
Q: How long does it take to complete a bench flash tune for my Mercedes-Benz M278 ECU?
A: DUDMD Tuning prioritizes efficiency and customer satisfaction, ensuring a quick turnaround for bench flash tunes. Typically, they process the ECU the same business day it arrives at their facility. Once the tuning is complete, they immediately ship the ECU back to the customer. This streamlined process is designed to minimize vehicle downtime, getting you back on the road as quickly as possible.
Q: What shipping methods are used for returning the tuned ECU?
A: To further reduce downtime, DUDMD Tuning offers free return shipping with USPS Priority Mail or UPS Ground, both of which generally take 2-3 days for delivery within the United States. For those requiring even faster return times, UPS Express expedited shipping is available as an option at checkout. This allows customers, including those with vehicles like the E550 W212, CLS550 W218, S550 W222, S550 W221, GL 450 GL550 X166, and ML550 W166, to choose the shipping method that best meets their needs and minimizes the time their vehicle is out of service.
Q: Can I track the progress of my ECU tune and shipping?
A: Yes, DUDMD Tuning ensures transparency throughout the tuning process. Upon completion of the bench flash tune and its subsequent shipment, you will be provided with a tracking number. This allows you to monitor the return shipping of your ECU, giving you peace of mind and the ability to plan for the reinstallation of the ECU in your vehicle.
Q: What should I expect in terms of vehicle downtime?
A: While the exact downtime for your vehicle depends on shipping times and the day your ECU arrives at DUDMD Tuning, the quick processing time and fast return shipping options aim to limit downtime to just a few days. Planning your ECU shipment to align with the beginning of the week can further optimize the process, ensuring minimal disruption to your use of the vehicle.
Q: Is there anything I can do to ensure a faster turnaround?
A: To expedite the bench flash tuning process for your Mercedes-Benz equipped with an M278 engine, consider the following tips:
- Ship your ECU early in the week to avoid weekend delays.
- Choose the UPS Express shipping option at checkout for the fastest return time.
- Ensure your ECU is well-packaged and the shipping information is accurate to prevent any delays in processing.
By following these guidelines, owners of models like the E550 W212, CLS550 W218, S550 W222, S550 W221, GL 450 GL550 X166, and ML550 W166 can enjoy the benefits of an M278 ECU Tuner's expertise with minimal downtime. ECU Tuning M278 enhances your vehicle's performance and driving experience, making the brief waiting period well worth it.

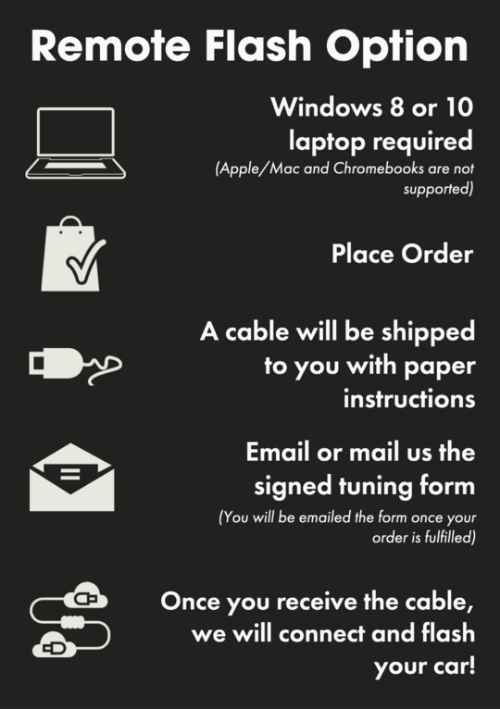

What is a Remote Flash Method for Installing My MB M278 ECU Tune?
What is a Remote Flash Method and How Does It Work for Installing My MB M278 ECU Tune?
The Remote Flash method is an advanced technique for updating the software of your vehicle's Engine Control Unit (ECU), specifically tailored for Mercedes-Benz vehicles equipped with the M278 engine. This process allows for the tuning of your vehicle's ECU to enhance performance without the need to physically remove and ship the ECU. It's a convenient, efficient, and less invasive method of tuning, ideal for models such as the E550 W212, CLS550 W218, S550 W222, S550 W221, GL 450 GL550 X166, and ML550 W166. Here's how it works:
Requirements for DUDMD Tuning Remote Flash Tuning:
- Compatible Laptop: You will need a laptop running Windows 8 or newer.
- Good WiFi Speed and Signal: Ensure your vehicle is located in an area with a strong and stable WiFi signal. This is crucial for uninterrupted communication between your vehicle's ECU and the tuner.
- TeamViewer Installation: TeamViewer, a remote access software, must be installed on your laptop. This software allows the M278 ECU Tuner to remotely control your laptop and perform the tuning process.
The Remote Flash Tuning Process for M278 ECU Tune:
- Appointment Scheduling: Remote flash tuning is conducted by appointment only. You will need to schedule a session with a tuner who specializes in ECU Tuning for the M278 engine. During this appointment, the tuner will connect to your laptop remotely to perform the tune.
- Preparation: Before the scheduled appointment, ensure your laptop is charged or connected to a power source, TeamViewer is installed and running, and your WiFi connection is stable. Position your vehicle in a location with good WiFi reception and have the laptop inside the vehicle.
- Tuning Session: At the scheduled time, the tuner will use TeamViewer to remotely access your laptop. You will be guided to connect your laptop to your vehicle's diagnostic port using a specific cable or adapter provided by the tuner. The tuner will then get stock ECU software for your vehicle, and proceed with the tuning process.
- Flashing the Tune: The tuner will upload the new tune to your vehicle's ECU, optimizing various parameters such as fuel injection, ignition timing, and boost pressure for improved performance. Throughout this process, you can communicate with the tuner via TeamViewer or text.
- Completion and Testing: Once the tuning is complete, the tuner will instruct you to start the vehicle and may perform some initial diagnostics to ensure the tune has been successfully installed. You're then encouraged to test drive the vehicle under safe conditions to experience the enhancements firsthand.
Benefits of M278 ECU Remote Flash Tuning:
- Convenience: There's no need to remove the ECU or send it away for tuning, reducing vehicle downtime significantly.
- Safety: The process is conducted by experienced professionals, ensuring the tune is safely and correctly installed.
By choosing the Remote Flash method for installing your MB M278 ECU tune, you benefit from a straightforward, efficient, and effective tuning process, all from the comfort of your preferred location. This method ensures your Mercedes-Benz achieves optimized performance with minimal hassle and downtime.
MED17.7.1 ECU and MED17.7.3 ECU - What does this mean?
Q: What are the MED17.7.1 and MED17.7.3 ECUs in the context of my Mercedes-Benz?
A: The MED17.7.1 and MED17.7.3 are types of Engine Control Units (ECUs) used in Mercedes-Benz vehicles, particularly those equipped with the M278 engine. These ECUs are manufactured by Bosch, a leading automotive technology company, and are part of the MED17 family, which is designed for direct injection gasoline engines. The numbers .7.1 and .7.3 refer to the versions of the ECU, with each version having specific features, capabilities, and improvements.
Key Differences and Implications for Tuning:
- MED17.7.1 ECU: This is an earlier version used in Mercedes-Benz models such as the E550 W212, CLS550 W218, S550 W221, and others. It controls various aspects of the engine's operation, including fuel injection, ignition timing, and boost pressure. M278 ECU Tuners often work with this ECU for performance enhancements, optimizing the engine for increased power, torque, and efficiency.
- MED17.7.3 ECU: A newer version, the MED17.7.3, incorporates advancements over the .7.1, offering improved processing power, enhanced security features, and potentially better fuel efficiency and emissions control. Models such as the S550 W222, GL 450 GL550 X166, and ML550 W166 might come with this updated ECU. ECU Tuning M278 for this version may allow for more sophisticated tuning strategies, taking advantage of the updated hardware and software capabilities.
Why Does the Version Matter for Tuning?
The version of your Mercedes-Benz's ECU can significantly impact the tuning process. Newer versions like the MED17.7.3 may have more robust encryption and protection mechanisms, requiring specialized knowledge and tools from an M278 ECU Tuner to modify. Conversely, the MED17.7.1, while still sophisticated, may be more familiar to tuners due to its longer presence in the market.
How Do I Know Which ECU My Vehicle Has?
Identifying whether your Mercedes-Benz has a MED17.7.1 or MED17.7.3 ECU involves checking the vehicle's documentation, using diagnostic tools, or consulting with a professional tuner. Knowing your ECU version is crucial for understanding the tuning potential of your vehicle and ensuring that any modifications are compatible with your specific ECU.
ECU Identifying Conclusion:
Whether your Mercedes-Benz is equipped with the MED17.7.1 or MED17.7.3 ECU, it's important to work with a professional M278 ECU Tuner who understands the intricacies of these systems. Proper ECU Tuning M278 can unlock enhanced performance, making your driving experience more enjoyable and personalized, whether you're behind the wheel of an E550 W212, CLS550 W218, S550 W222, or any other model within the M278 engine lineup.
M278 Engine - What Mercedes Benz vehicles have them?
The Mercedes-Benz M278 engine is a powerful, twin-turbocharged V8 engine, but it's important to note that it's not typically branded or used in AMG models. Instead, AMG models usually feature engines specifically developed by AMG, such as the M157, which is a higher-performance variant of the M278. However, the M278 engine itself is found in a range of high-performance Mercedes-Benz vehicles that offer substantial power and luxury, even if they are not AMG-branded.
The M278 engine, known for its robust performance and efficiency, is equipped in various non-AMG Mercedes-Benz models across the United States and Canadian markets. Below are the years, models, and chassis codes of Mercedes-Benz vehicles equipped with the M278 engine:
- Mercedes-Benz S550 (W221): 2012-2013
- Mercedes-Benz S550 4MATIC (W222): 2014-2017
- Mercedes-Benz CLS550 (W218): 2012-2018
- Mercedes-Benz E550 (W212): 2012-2016
- Mercedes-Benz GL450/GL550 (X166): 2013-2016
- Mercedes-Benz ML550 (W166): 2012-2014
- Mercedes-Benz SL550 (R231): 2013-2018
- Mercedes-Benz G550 (W463): Specific years vary, generally around 2013-2018
These vehicles, while not under the AMG marque, are highly regarded for their luxury, comfort, and notably enhanced performance thanks to the M278 engine. They provide a blend of everyday usability with the excitement of a powerful V8 engine, appealing to a wide range of drivers who seek Mercedes-Benz's renowned engineering and performance without venturing into AMG territory.
For those looking to enhance the performance of their M278-equipped vehicle further, options like M278 ECU Tuning by professional tuners can unlock additional power and efficiency from the engine, providing an even more spirited driving experience in models such as the E550 W212, CLS550 W218, S550 W222, S550 W221, GL 450 GL550 X166, and ML550 W166.
